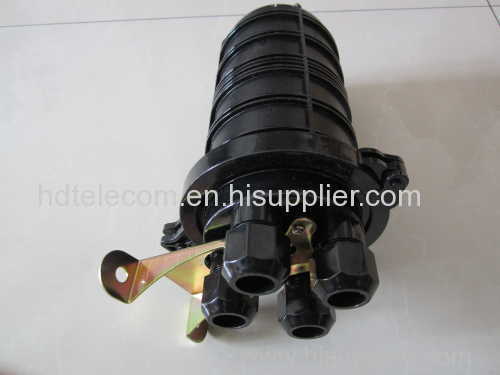

The closure size (High x Diameter)

288 x φ178 (mm)

Weight (no package)

Cable ports

4

Suitable cable Diameter

φ5φ18 mm

Core capacity (max.)

bunchy 1248

Main parts

No.

Name

Quantity

Remarks

1

outer casing

1 set

2

fiber opyic tray

bunchy 4 (max.)

bunchy, 6 , 12 cores tray ( 013 )

3

sealing ring

1 set

mechanical sealing

4

End plug

1 set

5

pressure testing valve

1 set

According to user's needs

6

earthing deriving device

1 set

According to user's needs

Main fittings and special tools

No.

Name

Quantity

Remarks

1

fiber optic splice protective sleeve

According to the cores capacity

2

nylon tie

According to the cores capacity

3

Insulating tape

1

4

desiccant

1

choice

5

sealing tape

1

6

pothook

no

7

earthing wire

1

8

emery cloth

1

9

Labeling paper

According to the cores capacity

10

special wrebch

2

11

staff guage paper

1

12

meta hoop

1

500 g

13

Ethyl alcohol cleaning cloth

According to user's needs

14

Buffer tube

According to user's needs
